InputArea Class Reference

Represents an input area. More...

#include <frame.h>

Inheritance diagram for InputArea:

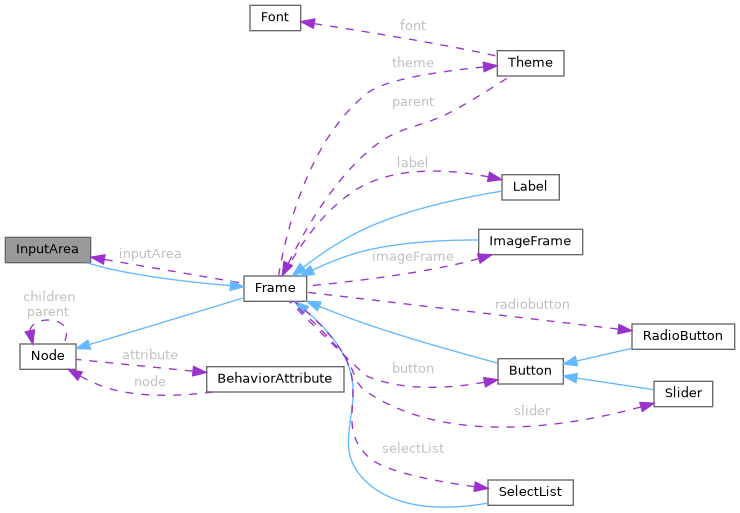

Collaboration diagram for InputArea:

Public Member Functions
void	constructor (char *defaultText, int ha, int va)
	Constructor for the input area class.
void	load (FILE *file)
	Loads data from a file.
void	refresh ()
	Refreshes the input area.
void	update ()
	Updates the state of the input area.
void	is_input_area (bool *result)
	Checks if the current area is an input area.
void	save (FILE *file, Node *editor)
	Saves the current state of the editor node to a file.
void	free ()
	Frees the resources allocated for the input area class.
Public Member Functions inherited from Frame
void	constructor (float x, int xu, float y, int yu, float w, int wu, float h, int hu, int ha, int va, int scroll, Theme *theme)
	Constructor for initializing a frame object with specified parameters.
void	handle_dimension_unit (float *src, float *dest, int vertical, double size, int unit, double containerWidth, double containerHeight)
	Handles the conversion of dimension units for a given source and destination.
void	init_frame ()
	Initializes the frame.
void	load (FILE *file)
	Loads data from a file.
void	refresh ()
	Refreshes the frame.
void	refreshContent ()
	Refreshes the content of the frame.
void	update ()
	Updates the state of the frame.
void	on_resize ()
	Handles the resize event for the frame.
void	draw_frame ()
	Draws a frame.
void	render (mat4 modelMatrix, Shader activeShader, WorldShaders *shaders)
	Renders a frame using the provided model matrix and shader.
void	save (FILE *file, Node *editor)
	Saves the current state of the editor node to a file.
void	get_vao (VAO *vao)
	Retrieves the Vertex Array Object (VAO).
void	is_gui_element (bool *result)
	Determines if the current object is a GUI element.
void	is_button (bool *result)
	Determines if a button is pressed.
void	is_input_area (bool *result)
	Checks if the current area is an input area.
void	is_selectlist (bool *result)
	Checks if the current item is in the selection list.
void	is_checkbox (bool *result)
	Checks if a condition is a checkbox.
bool	is_radiobutton ()
	Checks if the current frame is a radio button.
void	free ()
	Frees the resources allocated for the frame.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
ButtonState	state
char	text [256]
char	defaultText [256]
Public Attributes inherited from Frame
vec4	overflow
vec2	relPos
vec2	absPos
vec2	scale
vec2	size
vec2	contentSize
vec2	scroll
vec2	scrollTarget
char	unit [4]
char	alignment [2]
Theme *	theme
SDL_Surface *	contentSurface
TextureMap	contentTexture
union {
Label *   label
Button *   button
InputArea *   inputArea
SelectList *   selectList
ImageFrame *   imageFrame
RadioButton *   radiobutton
Slider *   slider
};
FrameFlags	flags
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Frame
static VBO	_vbo = 0
	Static variable to store the Vertex Buffer Object (VBO) identifier.
static VAO	_vao = 0
	Static variable to store the Vertex Array Object (VAO) identifier.
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Represents an input area.

This structure holds information about an input area, including its state, text, and default text.

Member Function Documentation

constructor()

void InputArea::constructor ( char *  defaultText, int  ha, int  va  )

inline

Constructor for the input area class.

This function initializes an input area with the specified default text, horizontal alignment, and vertical alignment.

Parameters

defaultText	A pointer to a character array containing the default text to be displayed in the input area.
ha	An integer representing the horizontal alignment of the input area. Possible values can be defined as constants or enums elsewhere in the code.
va	An integer representing the vertical alignment of the input area. Possible values can be defined as constants or enums elsewhere in the code.

load()

void InputArea::load ( FILE *  file )

inline

Loads data from a file.

This function reads data from the given file and processes it accordingly.

Parameters

file	A pointer to the file to be loaded.

refresh()

void InputArea::refresh ( )

inline

Refreshes the input area.

This function is responsible for refreshing the input area, updating its state and rendering any necessary changes. It should be called whenever the input area needs to be redrawn or updated.

update()

void InputArea::update ( )

inline

Updates the state of the input area.

This function is responsible for updating the state of the input area. It should be called whenever there is a need to refresh or change the state of the input area based on user interactions or other events.

is_input_area()

void InputArea::is_input_area ( bool *  result )

inline

Checks if the current area is an input area.

This function sets the value of the provided boolean pointer to indicate whether the current area is an input area.

Parameters

result

A pointer to a boolean variable where the result will be stored. true: if the current area is an input area. false: otherwise.

save()

void InputArea::save ( FILE *  file, Node *  editor  )

inline

Saves the current state of the editor node to a file.

This function writes the state of the given editor node to the specified file.

Parameters

file	A pointer to the FILE object where the editor node state will be saved.
editor	A pointer to the Node object representing the editor node whose state is to be saved.

free()

void InputArea::free ( )

inline

Frees the resources allocated for the input area class.

This function is responsible for releasing any memory or resources that were allocated for the input area class. It should be called when the input area is no longer needed to prevent memory leaks.

Member Data Documentation

state

ButtonState InputArea::state

Current state of the input area.

text

char InputArea::text[256]

Text entered in the input area.

defaultText

char InputArea::defaultText[256]

Default text of the input area.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/frames/input_area.class.c
• src/gui/frame.h
