SelectList Class Reference

Represents a selectable list. More...

#include <frame.h>

Inheritance diagram for SelectList:

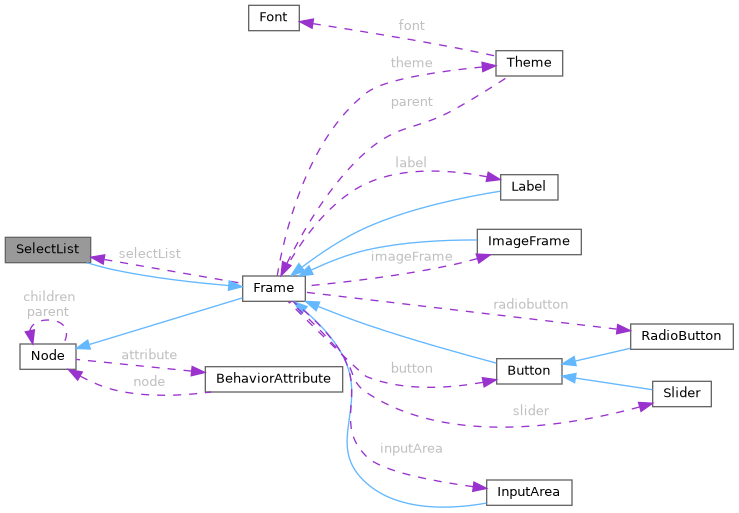

Collaboration diagram for SelectList:

Public Member Functions
void	constructor ()
	Constructor for the select list class.
void	load ()
	Loads the select list.
void	refreshOptions ()
	Refreshes the options in the select list.
void	refresh ()
	Refreshes the select list.
void	update ()
	Updates the state of the select list.
void	is_selectlist (bool *result)
	Checks if the current list is a select list.
void	save (FILE *file, Node *editor)
	Saves the current state of the Node editor to a file.
void	free ()
	Frees the resources allocated by the select list class.
Public Member Functions inherited from Frame
void	constructor (float x, int xu, float y, int yu, float w, int wu, float h, int hu, int ha, int va, int scroll, Theme *theme)
	Constructor for initializing a frame object with specified parameters.
void	handle_dimension_unit (float *src, float *dest, int vertical, double size, int unit, double containerWidth, double containerHeight)
	Handles the conversion of dimension units for a given source and destination.
void	init_frame ()
	Initializes the frame.
void	load (FILE *file)
	Loads data from a file.
void	refresh ()
	Refreshes the frame.
void	refreshContent ()
	Refreshes the content of the frame.
void	update ()
	Updates the state of the frame.
void	on_resize ()
	Handles the resize event for the frame.
void	draw_frame ()
	Draws a frame.
void	render (mat4 modelMatrix, Shader activeShader, WorldShaders *shaders)
	Renders a frame using the provided model matrix and shader.
void	save (FILE *file, Node *editor)
	Saves the current state of the editor node to a file.
void	get_vao (VAO *vao)
	Retrieves the Vertex Array Object (VAO).
void	is_gui_element (bool *result)
	Determines if the current object is a GUI element.
void	is_button (bool *result)
	Determines if a button is pressed.
void	is_input_area (bool *result)
	Checks if the current area is an input area.
void	is_selectlist (bool *result)
	Checks if the current item is in the selection list.
void	is_checkbox (bool *result)
	Checks if a condition is a checkbox.
bool	is_radiobutton ()
	Checks if the current frame is a radio button.
void	free ()
	Frees the resources allocated for the frame.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
ButtonState	state
char(*	options )[256]
u16 *	selected
u16	count
Public Attributes inherited from Frame
vec4	overflow
vec2	relPos
vec2	absPos
vec2	scale
vec2	size
vec2	contentSize
vec2	scroll
vec2	scrollTarget
char	unit [4]
char	alignment [2]
Theme *	theme
SDL_Surface *	contentSurface
TextureMap	contentTexture
union {
Label *   label
Button *   button
InputArea *   inputArea
SelectList *   selectList
ImageFrame *   imageFrame
RadioButton *   radiobutton
Slider *   slider
};
FrameFlags	flags
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Frame
static VBO	_vbo = 0
	Static variable to store the Vertex Buffer Object (VBO) identifier.
static VAO	_vao = 0
	Static variable to store the Vertex Array Object (VAO) identifier.
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Represents a selectable list.

This structure holds information about a selectable list, including its state, options, and selected item.

Member Function Documentation

constructor()

void SelectList::constructor ( )

inline

Constructor for the select list class.

This function initializes the select list class, setting up any necessary data structures and preparing the class for use.

load()

void SelectList::load ( )

inline

Loads the select list.

This function is responsible for initializing and loading the select list. It sets up the necessary data structures and prepares the list for use.

refreshOptions()

void SelectList::refreshOptions ( )

inline

Refreshes the options in the select list.

This function is responsible for updating the options available in the select list. It ensures that the list is current and reflects any changes that may have occurred.

refresh()

void SelectList::refresh ( )

inline

Refreshes the select list.

This function is responsible for refreshing the select list. It updates the display and state of the select list to reflect any changes that have occurred.

update()

void SelectList::update ( )

inline

Updates the state of the select list.

This function is responsible for updating the state of the select list. It performs necessary operations to ensure the select list is in the correct state based on the current context.

Note

This function does not take any parameters and does not return any value.

is_selectlist()

void SelectList::is_selectlist ( bool *  result )

inline

Checks if the current list is a select list.

This function sets the value of the provided boolean pointer to indicate whether the current list is a select list.

Parameters

result

A pointer to a boolean variable where the result will be stored. The value will be set to true if the current list is a select list, otherwise it will be set to false.

save()

void SelectList::save ( FILE *  file, Node *  editor  )

inline

Saves the current state of the Node editor to a file.

This function writes the current state of the Node editor to the specified file.

Parameters

file	A pointer to the FILE object where the state will be saved.
editor	A pointer to the Node editor whose state is to be saved.

free()

void SelectList::free ( )

inline

Frees the resources allocated by the select list class.

This function is responsible for releasing any memory or resources that were allocated for the select list class. It ensures that there are no memory leaks by properly deallocating all used resources.

Member Data Documentation

state

ButtonState SelectList::state

Current state of the select list.

options

char(* SelectList::options)[256]

Array of options in the select list.

selected

u16* SelectList::selected

Pointer to the selected option.

count

u16 SelectList::count

Number of options in the select list.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/frames/selectlist.class.c
• src/gui/frame.h
