Slider Class Reference

Represents a slider component in the GUI. More...

#include <frame.h>

Inheritance diagram for Slider:

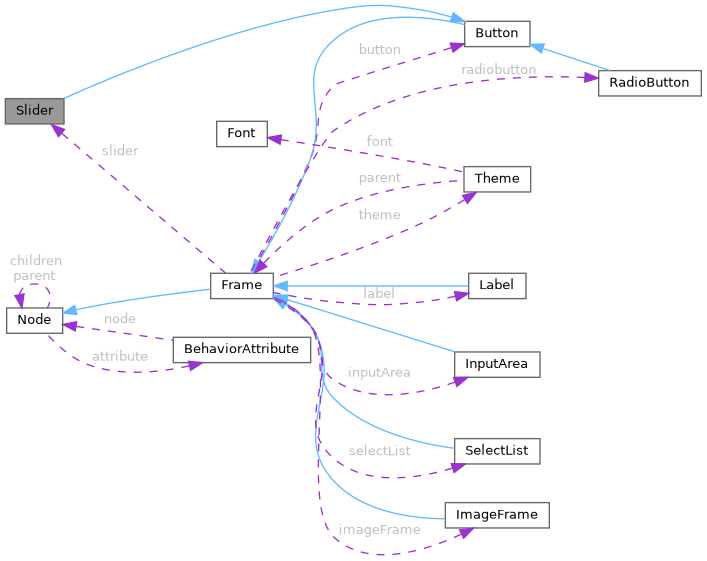

Collaboration diagram for Slider:

Public Member Functions
void	constructor (float min, float max)
	Constructor for the slider class.
void	init_slider ()
	Initializes the slider.
void	load (FILE *file)
	Loads data from a file.
void	save (FILE *file, Node *editor)
	Saves the state of the editor node to a file.
bool	is_radiobutton ()
	Checks if the current node is a radio button.
void	update ()
	Updates the state of the slider.
void	free ()
	Frees the resources allocated by the slider class.
Public Member Functions inherited from Button
void	constructor ()
	Constructor for the Button class.
void	init_button ()
	Initializes the button.
void	load ()
	Loads the button resources.
void	update ()
	Updates the state of the button.
void	is_button (bool *result)
	Checks if the current instance is a button.
void	save (FILE *file, Node *editor)
	Saves the state of the editor node to a file.
void	free ()
	Frees the resources used by the button.
Public Member Functions inherited from Frame
void	constructor (float x, int xu, float y, int yu, float w, int wu, float h, int hu, int ha, int va, int scroll, Theme *theme)
	Constructor for initializing a frame object with specified parameters.
void	handle_dimension_unit (float *src, float *dest, int vertical, double size, int unit, double containerWidth, double containerHeight)
	Handles the conversion of dimension units for a given source and destination.
void	init_frame ()
	Initializes the frame.
void	load (FILE *file)
	Loads data from a file.
void	refresh ()
	Refreshes the frame.
void	refreshContent ()
	Refreshes the content of the frame.
void	update ()
	Updates the state of the frame.
void	on_resize ()
	Handles the resize event for the frame.
void	draw_frame ()
	Draws a frame.
void	render (mat4 modelMatrix, Shader activeShader, WorldShaders *shaders)
	Renders a frame using the provided model matrix and shader.
void	save (FILE *file, Node *editor)
	Saves the current state of the editor node to a file.
void	get_vao (VAO *vao)
	Retrieves the Vertex Array Object (VAO).
void	is_gui_element (bool *result)
	Determines if the current object is a GUI element.
void	is_button (bool *result)
	Determines if a button is pressed.
void	is_input_area (bool *result)
	Checks if the current area is an input area.
void	is_selectlist (bool *result)
	Checks if the current item is in the selection list.
void	is_checkbox (bool *result)
	Checks if a condition is a checkbox.
bool	is_radiobutton ()
	Checks if the current frame is a radio button.
void	free ()
	Frees the resources allocated for the frame.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
ButtonState	state
bool *	checked
float *	value
float	min
float	max
Public Attributes inherited from Button
ButtonState	state
bool *	checked
Public Attributes inherited from Frame
vec4	overflow
vec2	relPos
vec2	absPos
vec2	scale
vec2	size
vec2	contentSize
vec2	scroll
vec2	scrollTarget
char	unit [4]
char	alignment [2]
Theme *	theme
SDL_Surface *	contentSurface
TextureMap	contentTexture
union {
Label *   label
Button *   button
InputArea *   inputArea
SelectList *   selectList
ImageFrame *   imageFrame
RadioButton *   radiobutton
Slider *   slider
};
FrameFlags	flags
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Frame
static VBO	_vbo = 0
	Static variable to store the Vertex Buffer Object (VBO) identifier.
static VAO	_vao = 0
	Static variable to store the Vertex Array Object (VAO) identifier.
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Represents a slider component in the GUI.

This structure defines a slider which can be used to select a value within a specified range.

Member Function Documentation

constructor()

void Slider::constructor ( float  min, float  max  )

inline

Constructor for the slider class.

This function initializes a slider object with the specified minimum and maximum values.

Parameters

min	The minimum value of the slider.
max	The maximum value of the slider.

init_slider()

void Slider::init_slider ( )

inline

Initializes the slider.

This function sets up the initial state of the slider, including any necessary resources or configurations. It should be called before using the slider.

load()

void Slider::load ( FILE *  file )

inline

Loads data from a file.

This function reads data from the given file and initializes the slider class with the loaded data.

Parameters

file	A pointer to the file to read from.

save()

void Slider::save ( FILE *  file, Node *  editor  )

inline

Saves the state of the editor node to a file.

This function writes the current state of the editor node to the specified file.

Parameters

file	A pointer to the FILE object where the state will be saved.
editor	A pointer to the Node object representing the editor whose state is to be saved.

is_radiobutton()

bool Slider::is_radiobutton ( )

inline

Checks if the current node is a radio button.

This function determines whether the current node in the GUI framework is a radio button. It returns a boolean value indicating the result.

Returns

true if the current node is a radio button, false otherwise.

update()

void Slider::update ( )

inline

Updates the state of the slider.

This function is responsible for updating the state of the slider based on user interactions or other events. It should be called regularly to ensure the slider's state is kept up to date.

free()

void Slider::free ( )

inline

Frees the resources allocated by the slider class.

This function is responsible for releasing any memory or resources that were allocated for the slider class. It should be called when the slider is no longer needed to prevent memory leaks.

Member Data Documentation

state

Slider::state

Current state of the slider, represented by the ButtonState enum.

checked

Slider::checked

Pointer to a boolean value used for alignment purposes.

value

Slider::value

Pointer to a float that holds the current value of the slider.

min

Slider::min

Minimum value that the slider can represent.

max

Slider::max

Maximum value that the slider can represent.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/frames/slider.class.c
• src/gui/frame.h
