ImageFrame Class Reference

Represents an image frame. More...

#include <frame.h>

Inheritance diagram for ImageFrame:

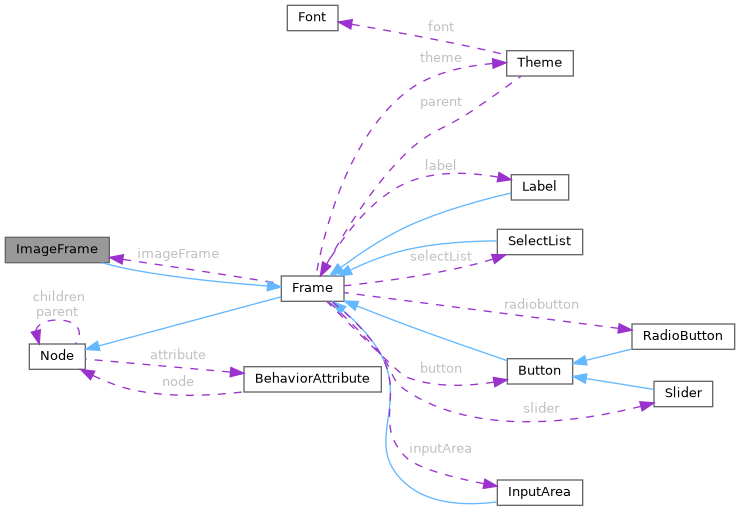

Collaboration diagram for ImageFrame:

Public Member Functions
void	constructor (float x, int xu, float y, int yu, float w, int wu, float h, int hu, int ha, int va, char *imagePath)
	Constructor for the image frame class.
void	load (FILE *file)
	Loads data from a file.
void	set_image (char *path)
	Sets the image for the frame.
void	render (mat4 modelMatrix, Shader activeShader, WorldShaders *shaders)
	Renders the image frame using the provided model matrix and shader.
void	save (FILE *file, Node *editor)
	Saves the current state of the editor to a file.
void	free ()
	Frees the resources allocated for the image frame.
Public Member Functions inherited from Frame
void	constructor (float x, int xu, float y, int yu, float w, int wu, float h, int hu, int ha, int va, int scroll, Theme *theme)
	Constructor for initializing a frame object with specified parameters.
void	handle_dimension_unit (float *src, float *dest, int vertical, double size, int unit, double containerWidth, double containerHeight)
	Handles the conversion of dimension units for a given source and destination.
void	init_frame ()
	Initializes the frame.
void	load (FILE *file)
	Loads data from a file.
void	refresh ()
	Refreshes the frame.
void	refreshContent ()
	Refreshes the content of the frame.
void	update ()
	Updates the state of the frame.
void	on_resize ()
	Handles the resize event for the frame.
void	draw_frame ()
	Draws a frame.
void	render (mat4 modelMatrix, Shader activeShader, WorldShaders *shaders)
	Renders a frame using the provided model matrix and shader.
void	save (FILE *file, Node *editor)
	Saves the current state of the editor node to a file.
void	get_vao (VAO *vao)
	Retrieves the Vertex Array Object (VAO).
void	is_gui_element (bool *result)
	Determines if the current object is a GUI element.
void	is_button (bool *result)
	Determines if a button is pressed.
void	is_input_area (bool *result)
	Checks if the current area is an input area.
void	is_selectlist (bool *result)
	Checks if the current item is in the selection list.
void	is_checkbox (bool *result)
	Checks if a condition is a checkbox.
bool	is_radiobutton ()
	Checks if the current frame is a radio button.
void	free ()
	Frees the resources allocated for the frame.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
char	path [256]
Public Attributes inherited from Frame
vec4	overflow
vec2	relPos
vec2	absPos
vec2	scale
vec2	size
vec2	contentSize
vec2	scroll
vec2	scrollTarget
char	unit [4]
char	alignment [2]
Theme *	theme
SDL_Surface *	contentSurface
TextureMap	contentTexture
union {
Label *   label
Button *   button
InputArea *   inputArea
SelectList *   selectList
ImageFrame *   imageFrame
RadioButton *   radiobutton
Slider *   slider
};
FrameFlags	flags
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Frame
static VBO	_vbo = 0
	Static variable to store the Vertex Buffer Object (VBO) identifier.
static VAO	_vao = 0
	Static variable to store the Vertex Array Object (VAO) identifier.
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Represents an image frame.

This structure holds the path to an image file.

Member Function Documentation

constructor()

void ImageFrame::constructor ( float  x, int  xu, float  y, int  yu, float  w, int  wu, float  h, int  hu, int  ha, int  va, char *  imagePath  )

inline

Constructor for the image frame class.

This function initializes an image frame with the specified parameters.

Parameters

x	The x-coordinate of the image frame.
xu	The unit of the x-coordinate.
y	The y-coordinate of the image frame.
yu	The unit of the y-coordinate.
w	The width of the image frame.
wu	The unit of the width.
h	The height of the image frame.
hu	The unit of the height.
ha	The horizontal alignment of the image frame.
va	The vertical alignment of the image frame.
imagePath	The file path to the image to be used in the frame.

load()

void ImageFrame::load ( FILE *  file )

inline

Loads data from a file.

This function reads data from the provided file pointer and processes it accordingly.

Parameters

file	A pointer to the FILE object from which data is to be read.

set_image()

void ImageFrame::set_image ( char *  path )

inline

Sets the image for the frame.

This function sets the image for the frame by loading it from the specified file path.

Parameters

path	The file path to the image to be loaded.

render()

void ImageFrame::render ( mat4  modelMatrix, Shader  activeShader, WorldShaders *  shaders  )

inline

Renders the image frame using the provided model matrix and shader.

This function is responsible for rendering the image frame. It takes a model matrix, an active shader, and a set of world shaders as parameters to perform the rendering.

Parameters

modelMatrix	A pointer to the model matrix used for rendering transformations.
activeShader	The shader program currently active for rendering.
shaders	A pointer to the WorldShaders structure containing various shaders used in the world.

save()

void ImageFrame::save ( FILE *  file, Node *  editor  )

inline

Saves the current state of the editor to a file.

This function writes the current state of the editor to the specified file.

Parameters

file	A pointer to the FILE object where the editor state will be saved.
editor	A pointer to the Node object representing the editor whose state is to be saved.

free()

void ImageFrame::free ( )

inline

Frees the resources allocated for the image frame.

This function is responsible for releasing any memory or resources that were allocated for the image frame. It should be called when the image frame is no longer needed to avoid memory leaks.

Member Data Documentation

path

char ImageFrame::path[256]

Path to the image file.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/frames/image_frame.class.c
• src/gui/frame.h
