SpotLight Class Reference

Represents a spotlight source. More...

#include <lighting.h>

Inheritance diagram for SpotLight:

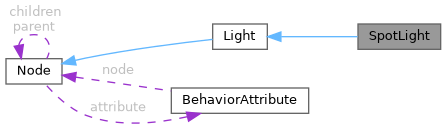

Collaboration diagram for SpotLight:

Public Member Functions
void	constructor (float r, float g, float b, float bias, float size, float constant, float linear, float quadratic, float cutOff, float outerCutOff)
	Constructor for the SpotLight class.
void	update (vec3 pos, vec3 rot, vec3 scale, float delta, u8 *lightsCount)
	Updates the state of the spotlight.
void	get_settings_data (void ***ptr, int *length)
	Retrieves the settings data.
void	load (FILE *file)
	Loads the SpotLight data from a file.
void	save (FILE *file)
	Saves the current state of the SpotLight object to a file.
void	configure_lighting (Camera *c, WorldShaders *shaders, DepthMap *depthMap, u8 *lightsCount)
	Configures the lighting.
Public Member Functions inherited from Light
void	init_light ()
	Initializes the light object.
void	is_gui_element (bool *result)
	Determines if the current object is a GUI element.
void	render (mat4 modelMatrix, Shader activeShader)
	Renders the light using the provided model matrix and active shader.
void	init_vao ()
	Initializes the Vertex Array Object (VAO) for the light class.
void	configure_lighting (WorldShaders *shaders, mat4 lightView, mat4 lightProjection, int storageBufferIndex, DepthMap *depthMap)
	Configures the lighting for the scene.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
vec3	color
float	bias
float	size
float	constant
float	linear
float	quadratic
float	cutOff
float	outerCutOff
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Light
static VBO	vbo = 0
	Static variable representing the Vertex Buffer Object (VBO) for the light class.
static VAO	vao = 0
	Static variable representing the Vertex Array Object (VAO) for the light class.
static Shader	billboardShader = 0
	Static variable representing the shader program used for rendering billboard lights.
static TextureMap	lightPointTexture = 0
	Static variable representing the texture map for point lights.
static TextureMap	directionalLightTexture = 0
	Static variable representing the texture map for directional lights.
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Represents a spotlight source.

A spotlight emits light in a cone shape, with a defined cutoff angle. This structure contains the properties of a spotlight, including ambient, diffuse, and specular components, attenuation factors, and cutoff angles.

Member Function Documentation

constructor()

void SpotLight::constructor ( float  r, float  g, float  b, float  bias, float  size, float  constant, float  linear, float  quadratic, float  cutOff, float  outerCutOff  )

inline

Constructor for the SpotLight class.

This function initializes a SpotLight object with the specified parameters.

Parameters

r	The red component of the light color.
g	The green component of the light color.
b	The blue component of the light color.
bias	The bias value for the light.
size	The size of the light.
constant	The constant attenuation factor.
linear	The linear attenuation factor.
quadratic	The quadratic attenuation factor.
cutOff	The inner cutoff angle for the spotlight (in degrees).
outerCutOff	The outer cutoff angle for the spotlight (in degrees).

update()

void SpotLight::update ( vec3  pos, vec3  rot, vec3  scale, float  delta, u8 *  lightsCount  )

inline

Updates the state of the spotlight.

This function updates the position, rotation, and scale of the spotlight based on the provided delta time and increments the lights count.

Parameters

pos	Vec3 structure representing the position of the spotlight.
rot	Vec3 structure representing the rotation of the spotlight.
scale	Vec3 structure representing the scale of the spotlight.
delta	The time delta used for updating the spotlight's state.
lightsCount	Pointer to an unsigned 8-bit integer representing the count of lights.

get_settings_data()

void SpotLight::get_settings_data ( void ***  ptr, int *  length  )

inline

Retrieves the settings data.

This function populates the provided pointer with the settings data and sets the length of the data.

Parameters

[out]	ptr	A pointer to a pointer to a pointer where the settings data will be stored.
[out]	length	A pointer to an integer where the length of the settings data will be stored.

load()

void SpotLight::load ( FILE *  file )

inline

Loads the SpotLight data from a file.

This function reads the SpotLight data from the specified file and initializes the SpotLight object with the loaded data. The file should contain the necessary information to fully describe the SpotLight, including its position, direction, color, intensity, and other relevant properties.

Parameters

file	A pointer to the file from which the SpotLight data will be loaded.

save()

void SpotLight::save ( FILE *  file )

inline

Saves the current state of the SpotLight object to a file.

This function writes the current state of the SpotLight object to the specified file. The file should be opened in a mode that allows writing before calling this function.

Parameters

file	A pointer to the FILE object where the state will be saved.

configure_lighting()

void SpotLight::configure_lighting ( Camera *  c, WorldShaders *  shaders, DepthMap *  depthMap, u8 *  lightsCount  )

inline

Configures the lighting.

This function configures the lighting.

Parameters

c	The camera to be used for rendering.
shaders	The shaders to be used for rendering.
lightsCount	The number of lights in the scene.

Member Data Documentation

color

vec3 SpotLight::color

Color component of the light.

bias

float SpotLight::bias

Bias factor for the light.

size

float SpotLight::size

Size factor for the light.

constant

float SpotLight::constant

Constant attenuation factor for the light.

linear

float SpotLight::linear

Linear attenuation factor for the light.

quadratic

float SpotLight::quadratic

Quadratic attenuation factor for the light.

cutOff

float SpotLight::cutOff

Cutoff angle for the spotlight.

outerCutOff

float SpotLight::outerCutOff

Outer cutoff angle for the spotlight.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/lights/spot_light.class.c
• src/render/lighting.h
