Camera Class Reference

A structure to represent a camera with position and rotation in 3D space. More...

#include <camera.h>

Inheritance diagram for Camera:

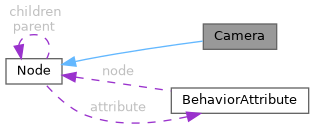

Collaboration diagram for Camera:

Public Member Functions
void	constructor ()
	Constructor for the Camera class.
void	load (FILE *file, Camera **c, Script *scripts, Node *editor)
	Loads a Camera object from a file.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the camera's position, rotation, and scale.
void	get_settings_data (void ***ptr, int *length)
	Retrieves the settings data.
void	save (FILE *file, Node *editor)
	Saves the state of the editor node to a file.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
vec3	pos
vec3	rot
float	fov
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

A structure to represent a camera with position and rotation in 3D space.

Member Function Documentation

constructor()

void Camera::constructor ( )

inline

Constructor for the Camera class.

This function initializes a new instance of the Camera class.

load()

void Camera::load ( FILE *  file, Camera **  c, Script *  scripts, Node *  editor  )

inline

Loads a Camera object from a file.

This function reads data from the specified file and initializes a Camera object.

Parameters

file	A pointer to the file from which the Camera data will be read.
c	A double pointer to the Camera object that will be initialized.
scripts	A pointer to the Script object associated with the Camera.
editor	A pointer to the Node object representing the editor.

update()

void Camera::update ( vec3  pos, vec3  rot, vec3  scale  )

inline

Updates the camera's position, rotation, and scale.

This function updates the camera's transformation properties including position, rotation, and scale based on the provided vectors.

Parameters

pos	Vec3 structure representing the new position of the camera.
rot	Vec3 structure representing the new rotation of the camera.
scale	Vec3 structure representing the new scale of the camera.

get_settings_data()

void Camera::get_settings_data ( void ***  ptr, int *  length  )

inline

Retrieves the settings data.

This function retrieves the settings data and stores it in the provided pointer. It also sets the length of the data.

Parameters

[out]	ptr	A pointer to a pointer to a pointer where the settings data will be stored. The function will allocate memory for the settings data and set this pointer to point to the allocated memory.
[out]	length	A pointer to an integer where the length of the settings data will be stored. The function will set this integer to the length of the settings data.

save()

void Camera::save ( FILE *  file, Node *  editor  )

inline

Saves the state of the editor node to a file.

This function writes the current state of the editor node to the specified file.

Parameters

file	A pointer to the FILE object where the state will be saved.
editor	A pointer to the Node object representing the editor whose state is to be saved.

Member Data Documentation

pos

vec3 Camera::pos

Position of the camera.

rot

vec3 Camera::rot

Rotation of the camera.

fov

float Camera::fov

Field of view of the camera.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/camera.class.c
• src/render/camera.h
