Light Class Reference

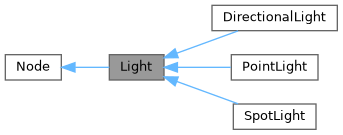

Inheritance diagram for Light:

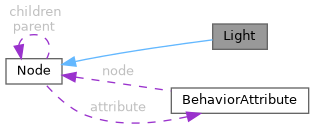

Collaboration diagram for Light:

Public Member Functions
void	init_light ()
	Initializes the light object.
void	is_gui_element (bool *result)
	Determines if the current object is a GUI element.
void	render (mat4 modelMatrix, Shader activeShader)
	Renders the light using the provided model matrix and active shader.
void	init_vao ()
	Initializes the Vertex Array Object (VAO) for the light class.
void	configure_lighting (WorldShaders *shaders, mat4 lightView, mat4 lightProjection, int storageBufferIndex, DepthMap *depthMap)
	Configures the lighting for the scene.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Static Public Attributes
static VBO	vbo = 0
	Static variable representing the Vertex Buffer Object (VBO) for the light class.
static VAO	vao = 0
	Static variable representing the Vertex Array Object (VAO) for the light class.
static Shader	billboardShader = 0
	Static variable representing the shader program used for rendering billboard lights.
static TextureMap	lightPointTexture = 0
	Static variable representing the texture map for point lights.
static TextureMap	directionalLightTexture = 0
	Static variable representing the texture map for directional lights.
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Additional Inherited Members
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Member Function Documentation

init_light()

void Light::init_light ( )

inline

Initializes the light object.

This function sets up the initial state of the light object, configuring any necessary parameters and preparing it for use in the application.

is_gui_element()

void Light::is_gui_element ( bool *  result )

inline

Determines if the current object is a GUI element.

This function sets the value pointed to by the result parameter to indicate whether the current object is a graphical user interface (GUI) element.

Parameters

result

A pointer to a boolean variable where the result will be stored. The value will be set to true if the current object is a GUI element, and false otherwise.

render()

void Light::render ( mat4  modelMatrix, Shader  activeShader  )

inline

Renders the light using the provided model matrix and active shader.

This function takes a model matrix and an active shader as parameters and performs the rendering of the light. The model matrix is used to transform the light's position and orientation in the scene, while the active shader is used to apply the appropriate shading effects.

Parameters

modelMatrix	Model matrix used for transforming the light.
activeShader	The shader program currently active for rendering.

init_vao()

void Light::init_vao ( )

inline

Initializes the Vertex Array Object (VAO) for the light class.

This function sets up the VAO which is used to store the vertex attribute configuration for the light objects. It binds the necessary buffers and configures the vertex attributes.

configure_lighting()

void Light::configure_lighting ( WorldShaders *  shaders, mat4  lightView, mat4  lightProjection, int  storageBufferIndex, DepthMap *  depthMap  )

inline

Configures the lighting for the scene.

This function configures the lighting for the scene by setting the light properties in the shader.

Parameters

shaders	The shaders to be used for rendering.
lightView	The view matrix for the light.
lightProjection	The projection matrix for the light.
storageBufferIndex	The index of the storage buffer.

Member Data Documentation

vbo

Light::vbo = 0

static

Static variable representing the Vertex Buffer Object (VBO) for the light class.

The VBO is used to store vertex data for rendering the lights in the OpenGL context.

vao

Light::vao = 0

static

Static variable representing the Vertex Array Object (VAO) for the light class.

The VAO is used to store the vertex attribute configuration for rendering the lights in the OpenGL context.

billboardShader

Light::billboardShader = 0

static

Static variable representing the shader program used for rendering billboard lights.

The shader program is used to render lights as billboards, which are 2D textures that always face the camera.

lightPointTexture

Light::lightPointTexture = 0

static

Static variable representing the texture map for point lights.

The texture map is used to apply a texture to point lights, enhancing their visual appearance in the OpenGL context.

directionalLightTexture

Light::directionalLightTexture = 0

static

Static variable representing the texture map for directional lights.

The texture map is used to apply a texture to directional lights, enhancing their visual appearance in the OpenGL context.

---

The documentation for this class was generated from the following file:

• src/classes/nodes/lights/light.class.c
