DirectionalLight Class Reference

Represents a directional light source. More...

#include <lighting.h>

Inheritance diagram for DirectionalLight:

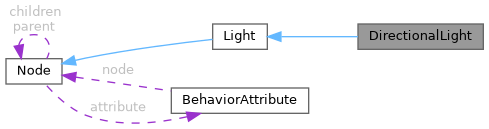

Collaboration diagram for DirectionalLight:

Public Member Functions
void	constructor (float r, float g, float b, float bias, float size, float constant, float linear, float quadratic)
	Constructor for the directional light class.
void	update (vec3 pos, vec3 rot, vec3 scale, double delta, u8 *lightsCount)
	Updates the state of a directional light.
void	get_settings_data (void ***ptr, int *length)
	Retrieves the settings data for the directional light.
void	load (FILE *file)
	Loads data from a file.
void	save (FILE *file)
	Saves the current state of the directional light to a file.
void	configure_lighting (Camera *c, WorldShaders *shaders, DepthMap *depthMap, u8 *lightsCount)
	Configures the directional lighting for the specified camera.
Public Member Functions inherited from Light
void	init_light ()
	Initializes the light object.
void	is_gui_element (bool *result)
	Determines if the current object is a GUI element.
void	render (mat4 modelMatrix, Shader activeShader)
	Renders the light using the provided model matrix and active shader.
void	init_vao ()
	Initializes the Vertex Array Object (VAO) for the light class.
void	configure_lighting (WorldShaders *shaders, mat4 lightView, mat4 lightProjection, int storageBufferIndex, DepthMap *depthMap)
	Configures the lighting for the scene.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
vec3	color
float	bias
float	size
float	constant
float	linear
float	quadratic
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Light
static VBO	vbo = 0
	Static variable representing the Vertex Buffer Object (VBO) for the light class.
static VAO	vao = 0
	Static variable representing the Vertex Array Object (VAO) for the light class.
static Shader	billboardShader = 0
	Static variable representing the shader program used for rendering billboard lights.
static TextureMap	lightPointTexture = 0
	Static variable representing the texture map for point lights.
static TextureMap	directionalLightTexture = 0
	Static variable representing the texture map for directional lights.
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Represents a directional light source.

A directional light emits light in a specific direction, similar to sunlight. This structure contains the properties of a directional light, including ambient, diffuse, and specular components, as well as attenuation factors.

Member Function Documentation

constructor()

void DirectionalLight::constructor ( float  r, float  g, float  b, float  bias, float  size, float  constant, float  linear, float  quadratic  )

inline

Constructor for the directional light class.

This function initializes a directional light with the specified parameters.

Parameters

r	Red component of the light color.
g	Green component of the light color.
b	Blue component of the light color.
bias	Bias value for the light.
size	Size of the light.
constant	Constant attenuation factor.
linear	Linear attenuation factor.
quadratic	Quadratic attenuation factor.

update()

void DirectionalLight::update ( vec3  pos, vec3  rot, vec3  scale, double  delta, u8 *  lightsCount  )

inline

Updates the state of a directional light.

This function updates the position, rotation, and scale of a directional light based on the given delta time and updates the count of active lights.

Parameters

pos	Vec3 structure representing the position of the light.
rot	Vec3 structure representing the rotation of the light.
scale	Vec3 structure representing the scale of the light.
delta	The time delta used for updating the light's state.
lightsCount	Pointer to an unsigned 8-bit integer representing the count of active lights.

get_settings_data()

void DirectionalLight::get_settings_data ( void ***  ptr, int *  length  )

inline

Retrieves the settings data for the directional light.

This function populates the provided pointer with the settings data and sets the length of the data.

Parameters

[out]	ptr	A pointer to a pointer to a pointer where the settings data will be stored. The function will allocate memory for the settings data and set this pointer to point to the allocated memory.
[out]	length	A pointer to an integer where the length of the settings data will be stored. The function will set this integer to the length of the settings data.

load()

void DirectionalLight::load ( FILE *  file )

inline

Loads data from a file.

This function reads data from the given file and loads it into the appropriate structures or variables. The file pointer must be valid and opened in the appropriate mode for reading.

Parameters

file	A pointer to the FILE object that identifies the file to read from.

save()

void DirectionalLight::save ( FILE *  file )

inline

Saves the current state of the directional light to a file.

This function writes the current state of the directional light object to the specified file.

Parameters

file	A pointer to the FILE object where the state will be saved.

configure_lighting()

void DirectionalLight::configure_lighting ( Camera *  c, WorldShaders *  shaders, DepthMap *  depthMap, u8 *  lightsCount  )

inline

Configures the directional lighting for the specified camera.

This function configures the directional lighting for the specified camera.

Parameters

c	The camera for which the directional lighting is to be configured.
shaders	The shaders to be used for rendering.
lightsCount	The count of lights in the scene.

Note

This function is called by the render loop to configure the lighting for the specified camera.

Member Data Documentation

color

vec3 DirectionalLight::color

Color component of the light.

bias

float DirectionalLight::bias

Bias factor for the light.

size

float DirectionalLight::size

Size factor for the light.

constant

float DirectionalLight::constant

Constant attenuation factor for the light.

linear

float DirectionalLight::linear

Linear attenuation factor for the light.

quadratic

float DirectionalLight::quadratic

Quadratic attenuation factor for the light.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/lights/directional_light.class.c
• src/render/lighting.h
