Area Class Reference

Represents an area with collision shapes and nodes. More...

#include <physics.h>

Inheritance diagram for Area:

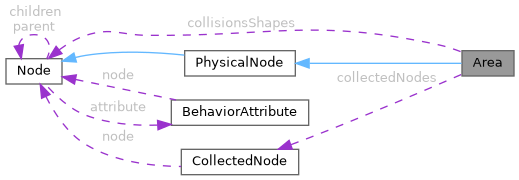

Collaboration diagram for Area:

Public Member Functions
void	constructor (int signal_id)
	Constructor for the physics area class.
void	load (FILE *file, Camera **c, Script *scripts, Node *editor)
	Loads data from a file and initializes the given camera, scripts, and editor node.
void	collect_node (Node *node, float distance, vec3 impactPoint)
	Collects a node based on the given distance and calculates the impact point.
void	is_area (bool *area)
	Checks if the given area is valid.
void	sort_nodes ()
	Sorts the nodes in the physics area.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of an object.
void	get_collisions_shapes (Node ****shapes, u8 **length)
	Retrieves the collision shapes and their lengths.
void	get_node_collection (CollectedNode **nodes, u8 *length)
	Retrieves a collection of nodes.
void	save (FILE *file)
	Saves the current state of the physics area to a file.
Public Member Functions inherited from PhysicalNode
void	free ()
	Frees the resources allocated for the PhysicalNode instance.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Static Public Member Functions
static int	compare_distance_nodes (const void *a, const void *b)
	Compares the distances of two nodes.

Public Attributes
struct Node **	collisionsShapes
u8	length
struct CollectedNode *	collectedNodes
u32	collectedLength
u16	signal_id
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Represents an area with collision shapes and nodes.

This structure holds information about an area, including its collision shapes, collected nodes, and sorted nodes.

Member Function Documentation

constructor()

void Area::constructor ( int  signal_id )

inline

Constructor for the physics area class.

This function initializes a new instance of the physics area class with the given signal ID.

Parameters

signal_id

The signal ID to initialize the physics area instance with.

load()

void Area::load ( FILE *  file, Camera **  c, Script *  scripts, Node *  editor  )

inline

Loads data from a file and initializes the given camera, scripts, and editor node.

This function reads data from the specified file and uses it to initialize the provided camera, scripts, and editor node. The exact format and content of the file are assumed to be known by the caller.

Parameters

file	A pointer to the FILE object from which data will be read.
c	A double pointer to a Camera object that will be initialized with data from the file.
scripts	A pointer to a Script object that will be initialized with data from the file.
editor	A pointer to a Node object representing the editor that will be initialized with data from the file.

collect_node()

void Area::collect_node ( Node *  node, float  distance, vec3  impactPoint  )

inline

Collects a node based on the given distance and calculates the impact point.

This function processes a given node and calculates the impact point based on the specified distance.

Parameters

node	A pointer to the Node structure that needs to be processed.
distance	A double value representing the distance used in the calculation.
impactPoint	Vec3 where the calculated impact point will be stored.

is_area()

void Area::is_area ( bool *  area )

inline

Checks if the given area is valid.

This function takes a pointer to a boolean variable and checks if the area is valid.

Parameters

area	A pointer to a boolean variable that indicates the validity of the area.

compare_distance_nodes()

static int Area::compare_distance_nodes ( const void *  a, const void *  b  )

inlinestatic

Compares the distances of two nodes.

This function is used to compare the distances of two nodes. It is typically used in sorting algorithms where nodes need to be ordered based on their distances.

Parameters

a	Pointer to the first node to compare.
b	Pointer to the second node to compare.

Returns

An integer less than, equal to, or greater than zero if the distance of the first node is considered to be respectively less than, equal to, or greater than the distance of the second node.

sort_nodes()

void Area::sort_nodes ( )

inline

Sorts the nodes in the physics area.

This function sorts the nodes in the physics area based on a specific criterion. The sorting algorithm and criterion are not specified in the provided code snippet.

Note

Ensure that the nodes are properly initialized before calling this function.

update()

void Area::update ( vec3  pos, vec3  rot, vec3  scale  )

inline

Updates the position, rotation, and scale of an object.

This function takes pointers to the position, rotation, and scale of an object and updates them accordingly.

Parameters

pos	Vec3 position of the object. It is expected to be a float array of size 3 representing x, y, and z coordinates.
rot	Vec3 rotation of the object. It is expected to be a float array of size 3 representing rotation angles around x, y, and z axes.
scale	Vec3 scale of the object. It is expected to be a float array of size 3 representing scaling factors along x, y, and z axes.

get_collisions_shapes()

void Area::get_collisions_shapes ( Node ****  shapes, u8 **  length  )

inline

Retrieves the collision shapes and their lengths.

This function populates the provided pointers with the collision shapes and their corresponding lengths.

Parameters

shapes	A pointer to a 4-dimensional array of Node pointers. This will be populated with the collision shapes.
length	A pointer to an array of unsigned 8-bit integers. This will be populated with the lengths of the collision shapes.

get_node_collection()

void Area::get_node_collection ( CollectedNode **  nodes, u8 *  length  )

inline

Retrieves a collection of nodes.

This function populates the provided array with a collection of nodes and sets the length of the collection.

Parameters

[out]	nodes	A pointer to an array of CollectedNode pointers that will be populated with the nodes.
[out]	length	A pointer to an unsigned 8-bit integer that will be set to the length of the node collection.

save()

void Area::save ( FILE *  file )

inline

Saves the current state of the physics area to a file.

This function writes the current state of the physics area to the specified file. The file should be opened in a mode that allows writing before calling this function.

Parameters

file	A pointer to a FILE object that identifies the file to which the state will be saved.

Member Data Documentation

collisionsShapes

struct Node** Area::collisionsShapes

length

u8 Area::length

< Array of collected nodes with distances.

collectedNodes

struct CollectedNode* Area::collectedNodes

< Number of collision shapes.

collectedLength

u32 Area::collectedLength

< Array of collected nodes with distances.

signal_id

u16 Area::signal_id

< Number of collected nodes.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/physics/area.class.c
• src/physics/physics.h
