StaticBody Class Reference

Represents a static body in the physics simulation. More...

#include <bodies.h>

Inheritance diagram for StaticBody:

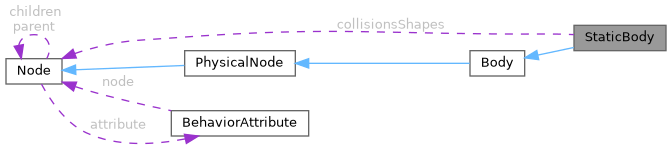

Collaboration diagram for StaticBody:

Public Member Functions
void	constructor (vec3 forcedNormal)
	Constructor for the static body class.
void	get_collisions_shapes (Node ****shapes, u8 **length)
	Retrieves the collision shapes and their lengths.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a static body.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a static body.
void	load (FILE *file, Camera **c, Script *scripts, Node *editor)
	Loads data from a file and initializes the provided Camera, Script, and Node structures.
void	save (FILE *file)
	Saves the current state of the static body to a file.
float	get_velocity_norm ()
	Get the velocity norm of a node.
void	get_velocity (vec3 velocity)
	Get the velocity of a node.
void	get_mass (float *mass)
	Get the mass of a node.
void	get_center_of_mass (vec3 com)
	Get the center of mass of a node.
void	get_collision_normal (vec3 normal)
	Retrieves the collision normal vector.
Public Member Functions inherited from Body
void	is_body (bool *body)
	Checks if the given pointer represents a body.
void	apply_impulse ()
	Applies an impulse to the physics body.
void	add_shape (Node *child)
	Adds a child shape to the specified node.
void	add_shape_and_realloc (Node *child)
	Adds a child shape to the specified node and reallocates memory if necessary.
void	remove_shape (Node *child)
	Removes a child shape from the specified node.
void	remove_shape_and_realloc (Node *child)
	Removes a child shape from the specified node and reallocates memory if necessary.
void	remove_shape_and_free (Node *child)
	Removes a child shape from the specified node and frees the memory allocated for the child shape.
void	remove_shape_and_free_and_realloc (Node *child)
	Removes a child shape from the specified node, frees the memory allocated for the child shape, and reallocates memory if necessary.
void	get_collision_normal (float *normal)
	Calculates the collision normal vector.
Public Member Functions inherited from PhysicalNode
void	free ()
	Frees the resources allocated for the PhysicalNode instance.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
struct Node **	collisionsShapes
vec3	forcedNormal
u8	length
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Represents a static body in the physics simulation.

A static body does not move and is used for objects like walls or floors.

Member Function Documentation

constructor()

void StaticBody::constructor ( vec3  forcedNormal )

inline

Constructor for the static body class.

This function initializes a static body with the given normal force.

Parameters

forcedNormal

Vec3 representing the normal force to be applied to the static body.

get_collisions_shapes()

void StaticBody::get_collisions_shapes ( Node ****  shapes, u8 **  length  )

inline

Retrieves the collision shapes and their lengths.

This function populates the provided pointers with the collision shapes and their corresponding lengths.

Parameters

shapes	A pointer to a 4-dimensional array of Node pointers. This will be populated with the collision shapes.
length	A pointer to an array of unsigned 8-bit integers. This will be populated with the lengths of the collision shapes.

update_global_position()

void StaticBody::update_global_position ( vec3  pos, vec3  rot, vec3  scale  )

inline

Updates the global position of a static body.

This function updates the global position of a static body based on the provided position, rotation, and scale vectors.

Parameters

pos	Vec3 structure representing the position of the static body.
rot	Vec3 structure representing the rotation of the static body.
scale	Vec3 structure representing the scale of the static body.

update()

void StaticBody::update ( vec3  pos, vec3  rot, vec3  scale  )

inline

Updates the position, rotation, and scale of a static body.

This function updates the transformation properties of a static body in the physics engine.

Parameters

pos	Vec3 structure representing the position of the static body.
rot	Vec3 structure representing the rotation of the static body.
scale	Vec3 structure representing the scale of the static body.

load()

void StaticBody::load ( FILE *  file, Camera **  c, Script *  scripts, Node *  editor  )

inline

Loads data from a file and initializes the provided Camera, Script, and Node structures.

Parameters

file	A pointer to the FILE object from which data will be read.
c	A double pointer to a Camera structure that will be initialized with data from the file.
scripts	A pointer to a Script structure that will be initialized with data from the file.
editor	A pointer to a Node structure that will be initialized with data from the file.

save()

void StaticBody::save ( FILE *  file )

inline

Saves the current state of the static body to a file.

This function writes the relevant data of the static body to the provided file.

Parameters

file	A pointer to a FILE object that identifies the file to which the data will be written.

get_velocity_norm()

float StaticBody::get_velocity_norm ( )

inline

Get the velocity norm of a node.

Returns

The velocity norm of the node.

get_velocity()

void StaticBody::get_velocity ( vec3  velocity )

inline

Get the velocity of a node.

Parameters

velocity

Output vector to store the velocity.

get_mass()

void StaticBody::get_mass ( float *  mass )

inline

Get the mass of a node.

Parameters

mass	Output pointer to store the mass.

get_center_of_mass()

void StaticBody::get_center_of_mass ( vec3  com )

inline

Get the center of mass of a node.

Parameters

com	Output vector to store the center of mass.

get_collision_normal()

void StaticBody::get_collision_normal ( vec3  normal )

inline

Retrieves the collision normal vector.

This function calculates and returns the normal vector of a collision. The normal vector is a unit vector that is perpendicular to the surface at the point of collision.

Parameters

[out]

normal

Vec3 where the normal vector will be stored.

Member Data Documentation

collisionsShapes

struct Node** StaticBody::collisionsShapes

Array of collision shapes associated with the static body.

forcedNormal

vec3 StaticBody::forcedNormal

If defined, force the collision normal of the static body.

length

u8 StaticBody::length

Number of collision shapes.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/physics/bodies/static_body.class.c
• src/physics/bodies.h
