Skybox Class Reference

Inheritance diagram for Skybox:

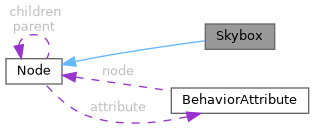

Collaboration diagram for Skybox:

Public Member Functions
TextureMap	load_cubemap (char(*faces)[100])
	Loads a cubemap texture from 6 individual texture faces.
void	create_skybox (TexturedMesh *texturedMesh, char(*skyboxTexture)[100])
	Creates a skybox with the given textures.
void	constructor (const char(*path)[100])
	Constructor for the Skybox class.
void	load (FILE *file)
	Loads data from a file.
void	save (FILE *file)
	Saves the current state of the Skybox to a file.
void	render (mat4 modelMatrix, Shader activeShader, WorldShaders *shaders)
	Renders the skybox using the provided model matrix and shader.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Additional Inherited Members
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Member Function Documentation

load_cubemap()

TextureMap Skybox::load_cubemap ( char(*)  faces[100] )

inline

Loads a cubemap texture from 6 individual texture faces.

This function takes an array of file paths to 6 texture images, each representing one face of a cubemap (right, left, top, bottom, front, back), and loads them into a single cubemap texture.

Parameters

faces

An array of 6 strings, each containing the file path to a texture image. The order of the faces should be: right, left, top, bottom, front, back.

Returns

TextureMap The loaded cubemap texture.

create_skybox()

void Skybox::create_skybox ( TexturedMesh *  texturedMesh, char(*)  skyboxTexture[100]  )

inline

Creates a skybox with the given textures.

This function initializes a skybox using the provided textures and assigns it to the given textured mesh.

Parameters

texturedMesh	A pointer to the TextureMap structure where the skybox will be created.
skyboxTexture	A 2D array containing the file paths of the six textures for the skybox. The textures should be ordered as follows: right, left, top, bottom, front, back.

Note

Each file path in the skyboxTexture array should not exceed 200 characters.

constructor()

void Skybox::constructor ( const char(*)  path[100] )

inline

Constructor for the Skybox class.

This function initializes a Skybox object with the given path to the skybox textures.

Parameters

path	A pointer to an array of strings, each string representing the file path to a texture image. The array should contain exactly 6 file paths, one for each face of the skybox.

load()

void Skybox::load ( FILE *  file )

inline

Loads data from a file.

This function reads data from the provided file and processes it to load the necessary information for the Skybox class.

Parameters

file	A pointer to the file to be read.

save()

void Skybox::save ( FILE *  file )

inline

Saves the current state of the Skybox to a file.

This function writes the current state of the Skybox object to the specified file.

Parameters

file	A pointer to the FILE object where the Skybox state will be saved.

render()

void Skybox::render ( mat4  modelMatrix, Shader  activeShader, WorldShaders *  shaders  )

inline

Renders the skybox using the provided model matrix and shader.

This function is responsible for rendering the skybox in the scene. It uses the provided model matrix to transform the skybox and the active shader to apply the necessary shading effects. Additionally, it utilizes the world shaders for any global shader settings or configurations.

Parameters

modelMatrix	Model matrix used to transform the skybox.
activeShader	The shader program currently active for rendering.
shaders	A pointer to the WorldShaders structure containing global shader settings.

---

The documentation for this class was generated from the following file:

• src/classes/nodes/skybox.class.c
