TexturedMesh Class Reference

Structure representing a textured mesh. More...

#include <model.h>

Inheritance diagram for TexturedMesh:

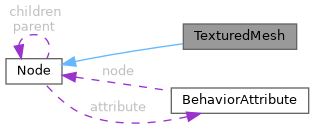

Collaboration diagram for TexturedMesh:

Public Member Functions
void	constructor (const char *path)
	Constructor for the textured mesh class.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load (FILE *file)
	Loads data from a file.
void	save (FILE *file)
	Saves the current state of the textured mesh to a file.
void	render (mat4 modelMatrix, Shader activeShader)
	Renders the textured mesh using the provided model matrix and active shader.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
VAO	VAO
TextureMap	texture
u8	length
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Structure representing a textured mesh.

This structure holds the Vertex Array Object (VAO) and texture map of a textured mesh.

Member Function Documentation

constructor()

void TexturedMesh::constructor ( const char *  path )

inline

Constructor for the textured mesh class.

This function initializes a textured mesh object using the provided file path.

Parameters

path	The file path to the texture to be used for the mesh.

get_settings_data()

void TexturedMesh::get_settings_data ( void ***  ptr, int *  length  )

inline

Retrieves settings data.

This function retrieves settings data and stores it in the provided pointer.

Parameters

[out]	ptr	A pointer to a pointer to a pointer where the settings data will be stored.
[out]	length	A pointer to an integer where the length of the settings data will be stored.

load()

void TexturedMesh::load ( FILE *  file )

inline

Loads data from a file.

This function reads data from the provided file pointer and loads it into the appropriate structures.

Parameters

file	A pointer to the FILE object that represents the file to be read.

save()

void TexturedMesh::save ( FILE *  file )

inline

Saves the current state of the textured mesh to a file.

This function writes the necessary data of the textured mesh to the provided file.

Parameters

file	A pointer to the FILE object where the textured mesh data will be saved.

render()

void TexturedMesh::render ( mat4  modelMatrix, Shader  activeShader  )

inline

Renders the textured mesh using the provided model matrix and active shader.

This function takes a model matrix and an active shader as input parameters and renders the textured mesh accordingly. The model matrix is used to transform the mesh, and the shader is used to apply the necessary rendering effects.

Parameters

modelMatrix	Model matrix used for transforming the mesh.
activeShader	The shader program used for rendering the mesh.

Member Data Documentation

VAO

VAO TexturedMesh::VAO

Vertex Array Object

texture

TextureMap TexturedMesh::texture

Texture map

length

u8 TexturedMesh::length

Length of the textured mesh

---

The documentation for this class was generated from the following files:

• src/classes/nodes/textured_mesh.class.c
• src/io/model.h
