KinematicBody Class Reference

Represents a kinematic body in the physics simulation. More...

#include <bodies.h>

Inheritance diagram for KinematicBody:

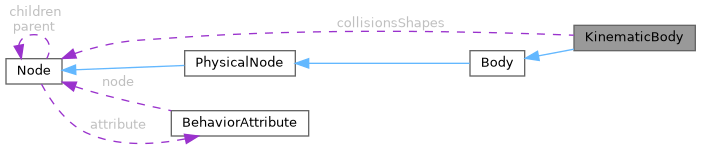

Collaboration diagram for KinematicBody:

Public Member Functions
void	constructor (vec3 velocity)
	Constructor for the kinematic body class.
void	get_length (u8 *length)
	Retrieves the length of a kinematic body.
void	get_collisions_shapes (Node ****shapes, u8 **length)
	Retrieves the collision shapes and their count.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a kinematic body.
void	update (vec3 pos, vec3 rot, vec3 scale, float delta)
	Updates the position, rotation, and scale of a kinematic body.
void	load (FILE *file, Camera **c, Script *scripts, Node *editor)
	Loads data from a file and initializes the provided Camera, Script, and Node objects.
void	save (FILE *file)
	Saves the state of the kinematic body to a file.
void	apply_impulse (vec3 impulse, vec3 torque, vec3 correction)
	Applies an impulse to the kinematic body.
float	get_velocity_norm ()
	Get the velocity norm of a node.
void	get_velocity (vec3 velocity)
	Get the velocity of a node.
void	get_mass (float *mass)
	Get the mass of a node.
void	get_center_of_mass (vec3 com)
	Get the center of mass of a node.
Public Member Functions inherited from Body
void	is_body (bool *body)
	Checks if the given pointer represents a body.
void	apply_impulse ()
	Applies an impulse to the physics body.
void	add_shape (Node *child)
	Adds a child shape to the specified node.
void	add_shape_and_realloc (Node *child)
	Adds a child shape to the specified node and reallocates memory if necessary.
void	remove_shape (Node *child)
	Removes a child shape from the specified node.
void	remove_shape_and_realloc (Node *child)
	Removes a child shape from the specified node and reallocates memory if necessary.
void	remove_shape_and_free (Node *child)
	Removes a child shape from the specified node and frees the memory allocated for the child shape.
void	remove_shape_and_free_and_realloc (Node *child)
	Removes a child shape from the specified node, frees the memory allocated for the child shape, and reallocates memory if necessary.
void	get_collision_normal (float *normal)
	Calculates the collision normal vector.
Public Member Functions inherited from PhysicalNode
void	free ()
	Frees the resources allocated for the PhysicalNode instance.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
struct Node **	collisionsShapes
vec3	velocity
u8	length
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

Represents a kinematic body in the physics simulation.

A kinematic body is controlled by the user and is not affected by forces.

Member Function Documentation

constructor()

void KinematicBody::constructor ( vec3  velocity )

inline

Constructor for the kinematic body class.

This function initializes a kinematic body with the given velocity.

Parameters

velocity

Vec3 representing the initial velocity of the kinematic body.

get_length()

void KinematicBody::get_length ( u8 *  length )

inline

Retrieves the length of a kinematic body.

This function assigns the length of a kinematic body to the provided pointer.

Parameters

length

A pointer to an unsigned 8-bit integer where the length will be stored.

get_collisions_shapes()

void KinematicBody::get_collisions_shapes ( Node ****  shapes, u8 **  length  )

inline

Retrieves the collision shapes and their count.

This function populates the provided pointers with the collision shapes and their respective count.

Parameters

[out]	shapes	A pointer to a 4-dimensional array of Node pointers where the collision shapes will be stored.
[out]	length	A pointer to an array of unsigned 8-bit integers where the count of collision shapes will be stored.

update_global_position()

void KinematicBody::update_global_position ( vec3  pos, vec3  rot, vec3  scale  )

inline

Updates the global position of a kinematic body.

This function updates the global position of a kinematic body based on the provided position, rotation, and scale vectors.

Parameters

pos	Vec3 structure representing the position of the kinematic body.
rot	Vec3 structure representing the rotation of the kinematic body.
scale	Vec3 structure representing the scale of the kinematic body.

update()

void KinematicBody::update ( vec3  pos, vec3  rot, vec3  scale, float  delta  )

inline

Updates the position, rotation, and scale of a kinematic body.

This function updates the position, rotation, and scale vectors of a kinematic body based on the given delta time. It is typically used in a physics simulation to update the state of the body over time.

Parameters

pos	Vec3 structure representing the position of the body.
rot	Vec3 structure representing the rotation of the body.
scale	Vec3 structure representing the scale of the body.
delta	The time delta used to update the body's state.

load()

void KinematicBody::load ( FILE *  file, Camera **  c, Script *  scripts, Node *  editor  )

inline

Loads data from a file and initializes the provided Camera, Script, and Node objects.

This function reads data from the specified file and uses it to initialize the provided Camera, Script, and Node objects. The function assumes that the file is already opened and ready for reading.

Parameters

file	A pointer to the FILE object from which data will be read.
c	A double pointer to a Camera object that will be initialized with the data read from the file.
scripts	A pointer to a Script object that will be initialized with the data read from the file.
editor	A pointer to a Node object that will be initialized with the data read from the file.

save()

void KinematicBody::save ( FILE *  file )

inline

Saves the state of the kinematic body to a file.

This function writes the current state of the kinematic body to the specified file.

Parameters

file	A pointer to the file where the state will be saved.

apply_impulse()

void KinematicBody::apply_impulse ( vec3  impulse, vec3  torque, vec3  correction  )

inline

Applies an impulse to the kinematic body.

This function applies a given impulse and torque to the kinematic body and performs any necessary corrections.

Parameters

impulse	Vec3 representing the impulse to be applied.
torque	Vec3 representing the torque to be applied.
correction	Vec3 representing the correction to be applied.

get_velocity_norm()

float KinematicBody::get_velocity_norm ( )

inline

Get the velocity norm of a node.

Returns

The velocity norm of the node.

get_velocity()

void KinematicBody::get_velocity ( vec3  velocity )

inline

Get the velocity of a node.

Parameters

velocity

Output vector to store the velocity.

get_mass()

void KinematicBody::get_mass ( float *  mass )

inline

Get the mass of a node.

Parameters

mass	Output pointer to store the mass.

get_center_of_mass()

void KinematicBody::get_center_of_mass ( vec3  com )

inline

Get the center of mass of a node.

Parameters

com	Output vector to store the center of mass.

Member Data Documentation

collisionsShapes

struct Node** KinematicBody::collisionsShapes

Array of collision shapes associated with the kinematic body.

velocity

vec3 KinematicBody::velocity

Current velocity of the kinematic body.

length

u8 KinematicBody::length

Number of collision shapes.

---

The documentation for this class was generated from the following files:

• src/classes/nodes/physics/bodies/kinematic_body.class.c
• src/physics/bodies.h
