MeshCShape Class Reference

Inheritance diagram for MeshCShape:

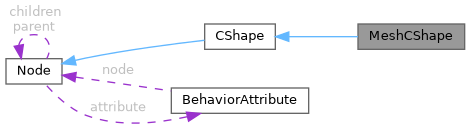

Collaboration diagram for MeshCShape:

Public Member Functions
void	constructor (const char *path)
	Constructor for the mesh_cshape class.
void	get_priority (int *priority)
	Retrieves the priority value.
void	load (FILE *file)
	Loads data from a file.
void	save (FILE *file)
	Saves the current state of the mesh_cshape object to a file.
Public Member Functions inherited from CShape
void	is_cshape (bool *cshape)
	Checks if the given shape is a cshape.
void	get_model (Model **model)
	Retrieves the model associated with the CShape.
void	get_shader (Shader *shader)
	Retrieves the shader information.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Prepares the rendering process by setting up the model matrix and activating the shader.
void	render (mat4 modelMatrix, Shader activeShader)
	Renders the shape using the provided model matrix and active shader.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Additional Inherited Members
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader
Static Public Attributes inherited from CShape
static Shader	collisionShader
	Shader used for collision detection.
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Member Function Documentation

constructor()

void MeshCShape::constructor ( const char *  path )

inline

Constructor for the mesh_cshape class.

This function initializes a mesh_cshape object using the provided file path.

Parameters

path	The file path to initialize the mesh_cshape object.

get_priority()

void MeshCShape::get_priority ( int *  priority )

inline

Retrieves the priority value.

This function assigns the priority value to the provided pointer.

Parameters

priority

A pointer to an integer where the priority value will be stored.

load()

void MeshCShape::load ( FILE *  file )

inline

Loads data from a file.

This function reads data from the provided file pointer and loads it into the appropriate structures.

Parameters

file	A pointer to the FILE object that represents the file to be read.

save()

void MeshCShape::save ( FILE *  file )

inline

Saves the current state of the mesh_cshape object to a file.

This function writes the necessary data of the mesh_cshape object to the provided file. The file should be opened in a mode that allows writing before calling this function.

Parameters

file	A pointer to a FILE object that identifies the file to which the data will be written.

---

The documentation for this class was generated from the following file:

• src/classes/nodes/cshapes/mesh_cshape.class.c
