CShape Class Reference

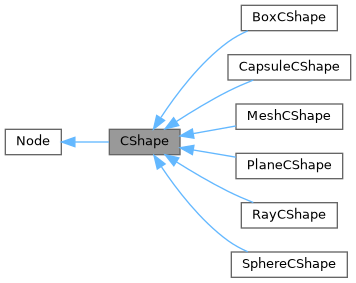

Inheritance diagram for CShape:

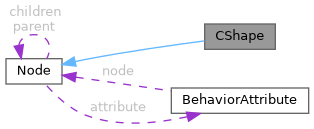

Collaboration diagram for CShape:

Public Member Functions
void	is_cshape (bool *cshape)
	Checks if the given shape is a cshape.
void	get_model (Model **model)
	Retrieves the model associated with the CShape.
void	get_shader (Shader *shader)
	Retrieves the shader information.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Prepares the rendering process by setting up the model matrix and activating the shader.
void	render (mat4 modelMatrix, Shader activeShader)
	Renders the shape using the provided model matrix and active shader.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Static Public Attributes
static Shader	collisionShader
	Shader used for collision detection.
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Additional Inherited Members
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Member Function Documentation

is_cshape()

void CShape::is_cshape ( bool *  cshape )

inline

Checks if the given shape is a cshape.

This function sets the value of the boolean pointer to indicate whether the shape is a cshape.

Parameters

cshape

A pointer to a boolean variable that will be set to true if the shape is a cshape, false otherwise.

get_model()

void CShape::get_model ( Model **  model )

inline

Retrieves the model associated with the CShape.

This function assigns the model associated with the CShape to the provided pointer. The model is returned as a double pointer to allow modification of the original pointer passed by the caller.

Parameters

[out]

model

A double pointer to a Model structure where the model associated with the CShape will be stored.

get_shader()

void CShape::get_shader ( Shader *  shader )

inline

Retrieves the shader information.

This function is responsible for obtaining the shader information and storing it in the provided Shader structure.

Parameters

shader

A pointer to a Shader structure where the shader information will be stored.

prepare_render()

void CShape::prepare_render ( mat4  modelMatrix, Shader  activeShader  )

inline

Prepares the rendering process by setting up the model matrix and activating the shader.

This function is responsible for preparing the necessary components for rendering a shape. It takes a model matrix and an active shader as parameters and performs the required setup.

Parameters

modelMatrix	Model matrix (of type mat4) that will be used for rendering. The model matrix contains the transformations (translation, rotation, scaling) that will be applied to the shape before rendering.
activeShader	The shader program (of type Shader) that will be used for rendering. The shader program contains the vertex and fragment shaders that will be applied to the shape during rendering.

render()

void CShape::render ( mat4  modelMatrix, Shader  activeShader  )

inline

Renders the shape using the provided model matrix and active shader.

This function takes a model matrix and an active shader as parameters and renders the shape accordingly. The model matrix is used to transform the shape in the 3D space, and the active shader is used to apply shading effects during the rendering process.

Parameters

modelMatrix	Mat4 structure representing the model matrix. This matrix is used to transform the shape in the 3D space.
activeShader	An instance of the Shader structure representing the active shader. This shader is used to apply shading effects during the rendering process.

Member Data Documentation

collisionShader

Shader CShape::collisionShader

static

Shader used for collision detection.

This static variable holds the shader program used to detect collisions between shapes. The shader is initialized and used within the CShape class to perform collision detection operations.

---

The documentation for this class was generated from the following file:

• src/classes/nodes/cshapes/cshape.class.c
