RenderTarget Class Reference

A structure to handle render targets. More...

#include <framebuffer.h>

Inheritance diagram for RenderTarget:

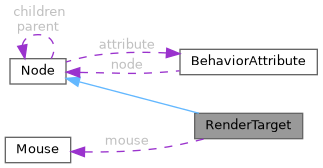

Collaboration diagram for RenderTarget:

Public Member Functions
void	constructor (int width, int height)
	Constructor for the render target class.
void	update ()
	Updates the render target.
void	load (FILE *file)
	Loads data from a file.
void	save (FILE *file)
	Saves the current state to the specified file.
void	is_render_target (bool *render_target)
	Checks if the current target is a render target.
void	free ()
	Frees the resources allocated for the render target.
Public Member Functions inherited from Node
void	constructor ()
	Constructor for the Node class.
void	initialize_node ()
	Initializes a node.
void	get_glow_shader (Shader *shader)
	Retrieves the glow shader.
void	get_settings_data (void ***ptr, int *length)
	Retrieves settings data.
void	load ()
	Loads the necessary resources or data for the node.
void	save (FILE *file)
	Saves the current state to the specified file.
void	prepare_render (mat4 modelMatrix, Shader activeShader)
	Renders a node using the specified model matrix and shader.
void	render ()
	Renders the node.
void	update_global_position (vec3 pos, vec3 rot, vec3 scale)
	Updates the global position of a node.
void	update (vec3 pos, vec3 rot, vec3 scale)
	Updates the position, rotation, and scale of a node.
void	on_resize ()
	Handles the resize event for the node.
void	free ()
	Frees the resources allocated by the object.
void	is_cshape (bool *cshape)
	Checks if the current shape is a custom shape.
void	is_body (bool *body)
	Sets the body status of the node.
void	is_area (bool *area)
	Checks if the current node is within a specified area.
void	is_render_target (bool *render_target)
	Sets the render target status.
void	is_gui_element (bool *result)
	Determines if the current node is a GUI element.
void	add_child (Node *child)
	Adds a child node to a parent node.
void	add_child_and_realloc (Node *child)
	Adds a child node to a parent node and reallocates memory if necessary.
void	remove_child (Node *child)
	Removes a child node from a parent node.
void	remove_child_and_realloc (Node *child)
	Removes a child node from a parent node and reallocates memory if necessary.
void	remove_child_and_free (Node *child)
	Removes a child node from a parent node and frees the memory of the child node.
void	remove_child_and_free_and_realloc (Node *child)
	Removes a child node from a parent node, frees the memory of the child node, and reallocates memory if necessary.
int	index_of_child (Node *child)
	Retrieves the index of a child node in a parent node's children array.
void	print (int level)
	Prints the details of a node at a specified level of indentation.
void	emit_ready (...)
	Emits the 'ready' signal for the node.
void	emit_update (...)
	Emits an update event for the node.
void	emit_signal (...)
	Emits a signal if the node has a script and the script has a signal handler.

Public Attributes
FBO	fbo
TextureMap	texture
int	w
int	h
Mouse	mouse
Public Attributes inherited from Node
void *	object
struct Node **	children
struct Node *	parent
u16	length
u8	type
u8	flags
vec3	pos
vec3	rot
vec3	scale
vec3	globalPos
vec3	globalRot
vec3	globalScale
Behavior *	behavior
BehaviorAttribute *	attribute
u8	attributes_count
Shader	shader

Additional Inherited Members
Static Public Attributes inherited from Node
static Shader	glowShader = 0
	A static Shader variable used for glow effect.

Detailed Description

A structure to handle render targets.

This structure contains the necessary components to manage render targets, including the framebuffer and texture map.

Note

The render target is used to render to a texture instead of the screen.

Member Function Documentation

constructor()

void RenderTarget::constructor ( int  width, int  height  )

inline

Constructor for the render target class.

This function initializes a render target with the specified width and height.

Parameters

width	The width of the render target.
height	The height of the render target.

update()

void RenderTarget::update ( )

inline

Updates the render target.

This function is responsible for updating the state of the render target. It performs necessary operations to ensure the render target is up-to-date.

load()

void RenderTarget::load ( FILE *  file )

inline

Loads data from a file.

This function reads data from the given file and processes it accordingly.

Parameters

file	A pointer to the FILE object that represents the file to be read.

save()

void RenderTarget::save ( FILE *  file )

inline

Saves the current state to the specified file.

This function writes the current state of the render target to the given file. The file must be opened in a mode that allows writing.

Parameters

file	A pointer to a FILE object that identifies the file to which the state will be saved.

is_render_target()

void RenderTarget::is_render_target ( bool *  render_target )

inline

Checks if the current target is a render target.

This function sets the value of the provided boolean pointer to indicate whether the current target is a render target.

Parameters

render_target

A pointer to a boolean variable that will be set to true if the current target is a render target, or false otherwise.

free()

void RenderTarget::free ( )

inline

Frees the resources allocated for the render target.

This function is responsible for releasing any memory or resources that were allocated for the render target. It should be called when the render target is no longer needed to avoid memory leaks.

Member Data Documentation

fbo

FBO RenderTarget::fbo

texture

TextureMap RenderTarget::texture

w

int RenderTarget::w

h

int RenderTarget::h

mouse

Mouse RenderTarget::mouse

---

The documentation for this class was generated from the following files:

• src/classes/nodes/render_target.class.c
• src/render/framebuffer.h
